DELL UltraSharp UP3017A LED display 76.2 cm (30") 2560 x 1600 pixels WQXGA LCD Black
SKU
DELL-UP3017A
Login for pricing
Available for backorder
76.2cm (30") WQXGA 2560 x 1600 LED IPS, 16:10, 350cd/m², 1.073B, 8ms, 178°/178°, 1000:1
- 76.2cm (30") WQXGA 2560 x 1600 LED IPS
- 8ms, 16:10, 350cd/m2, 1000:1
- USB, HDMI, DisplayPort, Mini DisplayPort
Category: Computer Monitors

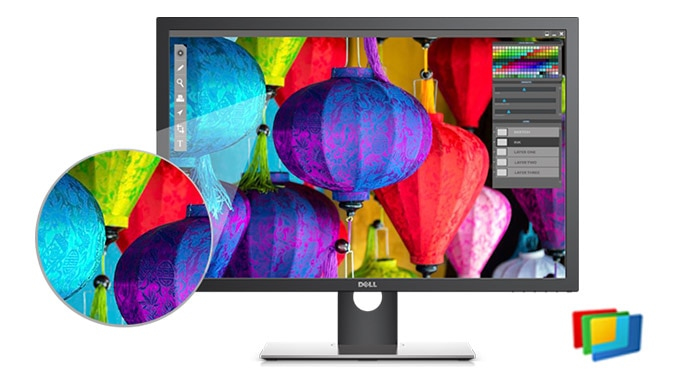

PremierColor for unparalleled performance.
- Precise color, out of the box: With a factory calibration report and a Delta-E less than 2, you can be confident that your colors will be impressively accurate right from the start.
- Wide color coverage: Major industry standards such as AdobeRGB, sRGB, REC709 and DCI-P3 are 99% covered.
- Fine-tune to your preferences: Custom Color mode, SDK and optional X-rite i1Display Pro colorimeter allow you to customize colors to your preferences.
- Exceptional detail: With 1.07 billion colors (64x more colors than the standard monitor), you can see more details in higher clarity, even across an ultrawide viewing angle.
Incredible usability.

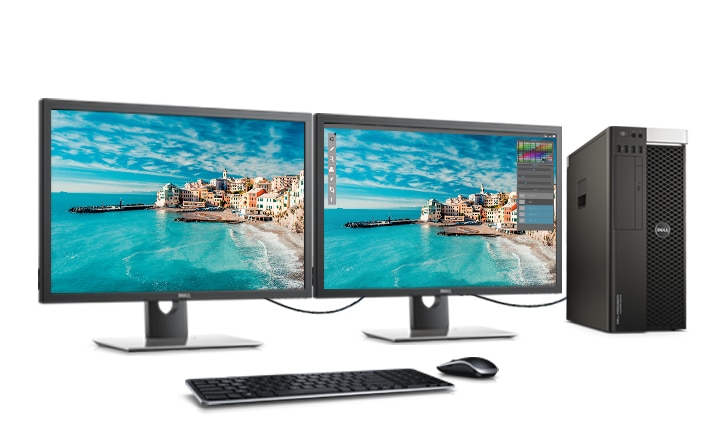

- Expanded canvas: Advanced connectivity (DP-out) allows for simple daisy chain extension into a second screen.
- A view tailored to you: Easily display content from two PC sources with picture-by-picture and picture-in-picture features. Plus the KVM feature enables you to manage content with a single keyboard and mouse.
- Stay connected: A wide range of connectivity ports ensure that you can connect your secondary devices without extra hardware.
- Work comfortably: With height-adjustable, tilt, swivel and pivot features, you can collaborate and work with ease.
30" monitor with PremierColor that delivers every creative professional their ideal color space.
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Performance | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Display | |
| Display brightness (typical) | 350 cd/m² |
| Screen shape | Flat |
| Display number of colours | 1.073 billion colours |
| Native aspect ratio | 16:10 |
| Pixel density | 101 ppi |
| Maximum refresh rate | 60 Hz |
| HD type | WQXGA |
| Display technology | LCD |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.251 x 0.251 mm |
| Horizontal scan range | 30 - 113 kHz |
| Vertical scan range | 50 - 86 Hz |
| Viewable size, horizontal | 64.1 cm |
| Viewable size, vertical | 40.1 cm |
| Viewable size diagonal | 75.6 cm |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2048 x 1280, 2560 x 1600 (WQXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1600p |
| Backlight type | LED |
| Display resolution | 2560 x 1600 pixels |
| Response time | 8 ms |
| Display diagonal | 76.2 cm (30") |
| Contrast ratio (typical) | 1000:1 |
| Response time (fast) | 6 ms |
| Touchscreen | No |
| Panel type | IPS |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 2 |
| USB Type-A downstream ports quantity | 4 |
| Headphone out | No |
| DVI port | No |
| HDMI ports quantity | 2 |
| Mini DisplayPorts quantity | 1 |
| DisplayPorts quantity | 2 |
| Audio input | No |
| Audio output | Yes |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Technical details | |
| Height (without stand) | 447.1 mm |
| Depth (without stand) | 58 mm |
| Width (without stand) | 686.9 mm |
| Cable lock slot | Yes |
| HDMI | Yes |
| Product colour | Black |
| Sustainability certificates | ENERGY STAR |
| Weight (with stand) | 9.3 kg |
| Touchscreen | No |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Swivelling | Yes |
| Swivel angle range | -30 - 30° |
| Tilt angle range | -5 - 21° |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Height adjustment | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 108 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 35.8 W |
| Power consumption (off) | 0.2 W |
| Input current | 1.6 A |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 36 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 344915 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Height (without stand) | 447.1 mm |
| Depth (without stand) | 58 mm |
| Width (without stand) | 686.9 mm |
| Width (with stand) | 686.9 mm |
| Depth (with stand) | 217 mm |
| Height (with stand) | 632.3 mm |
| Bezel width (side) | 2.27 cm |
| Bezel width (top) | 2.27 cm |
| Bezel width (bottom) | 2.35 cm |
| Weight (with stand) | 9.3 kg |
| Weight (without stand) | 6.49 kg |
| Package weight | 13.1 kg |
| Packaging data | |
| Package weight | 13.1 kg |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 344915 |
| Sustainability certificates | ENERGY STAR |
| Other features | |
| Height (without stand) | 447.1 mm |
| Depth (without stand) | 58 mm |
| Width (without stand) | 686.9 mm |
| Power consumption (max) | 108 W |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Touchscreen | No |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
